Grill Mounted Light Bar Plans

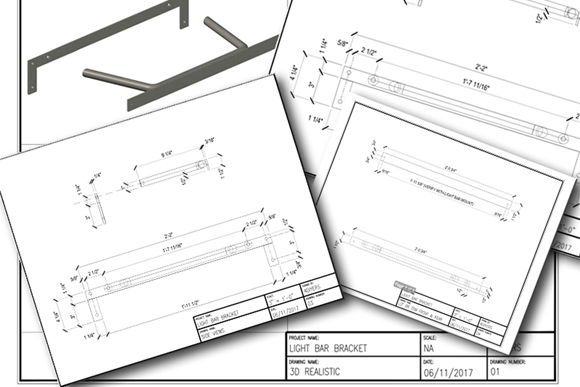

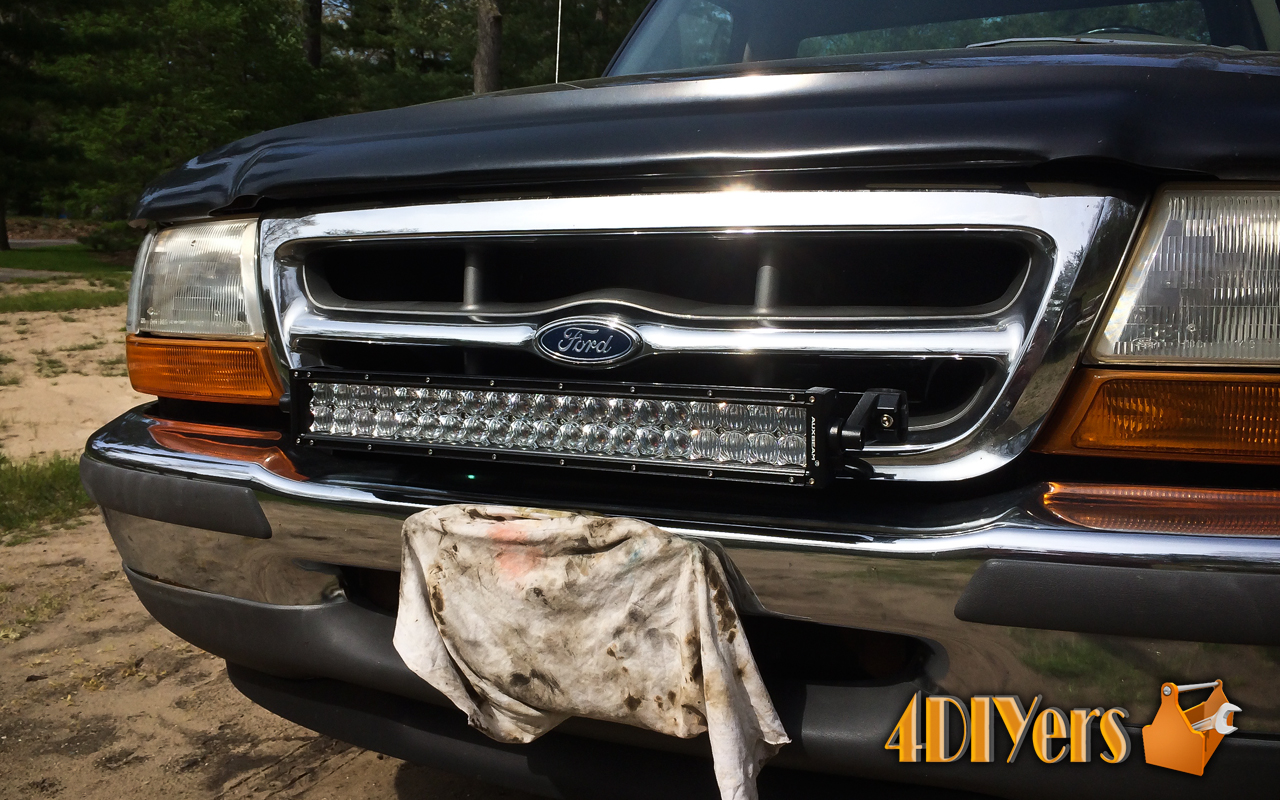

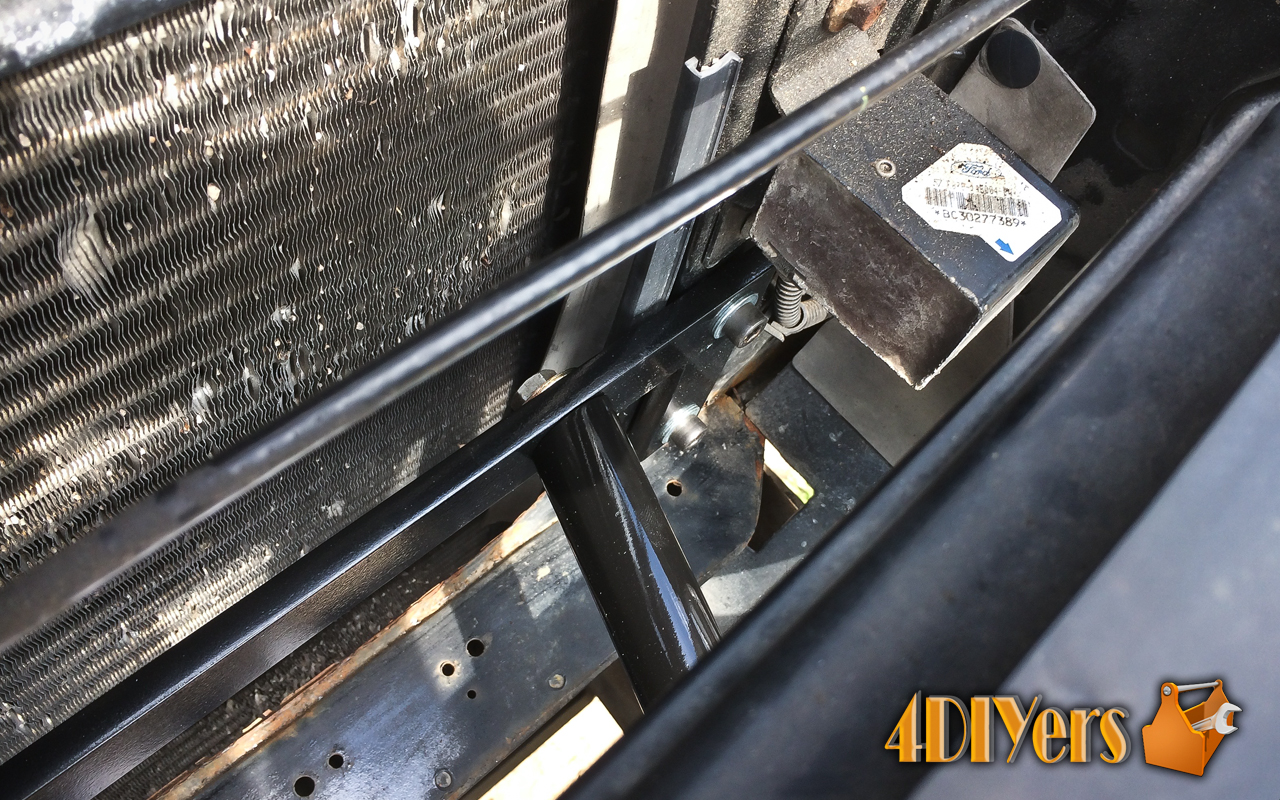

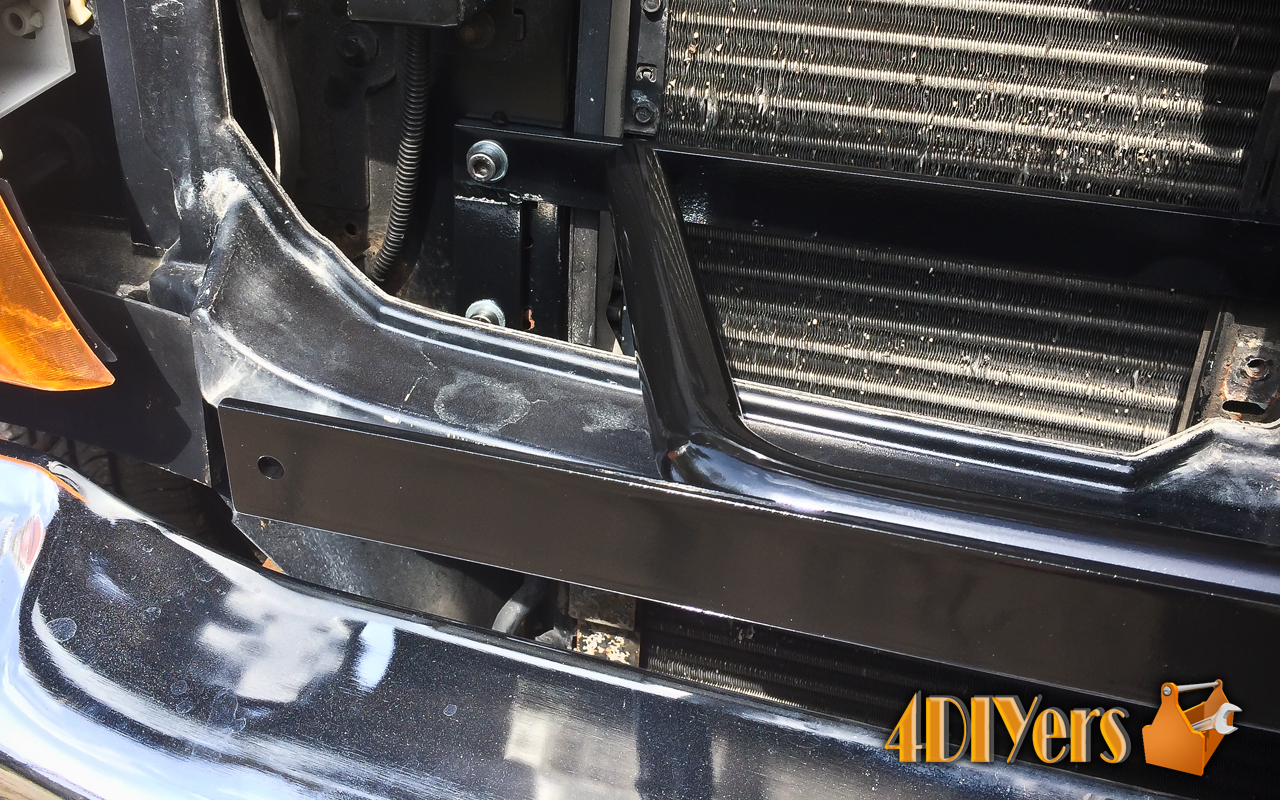

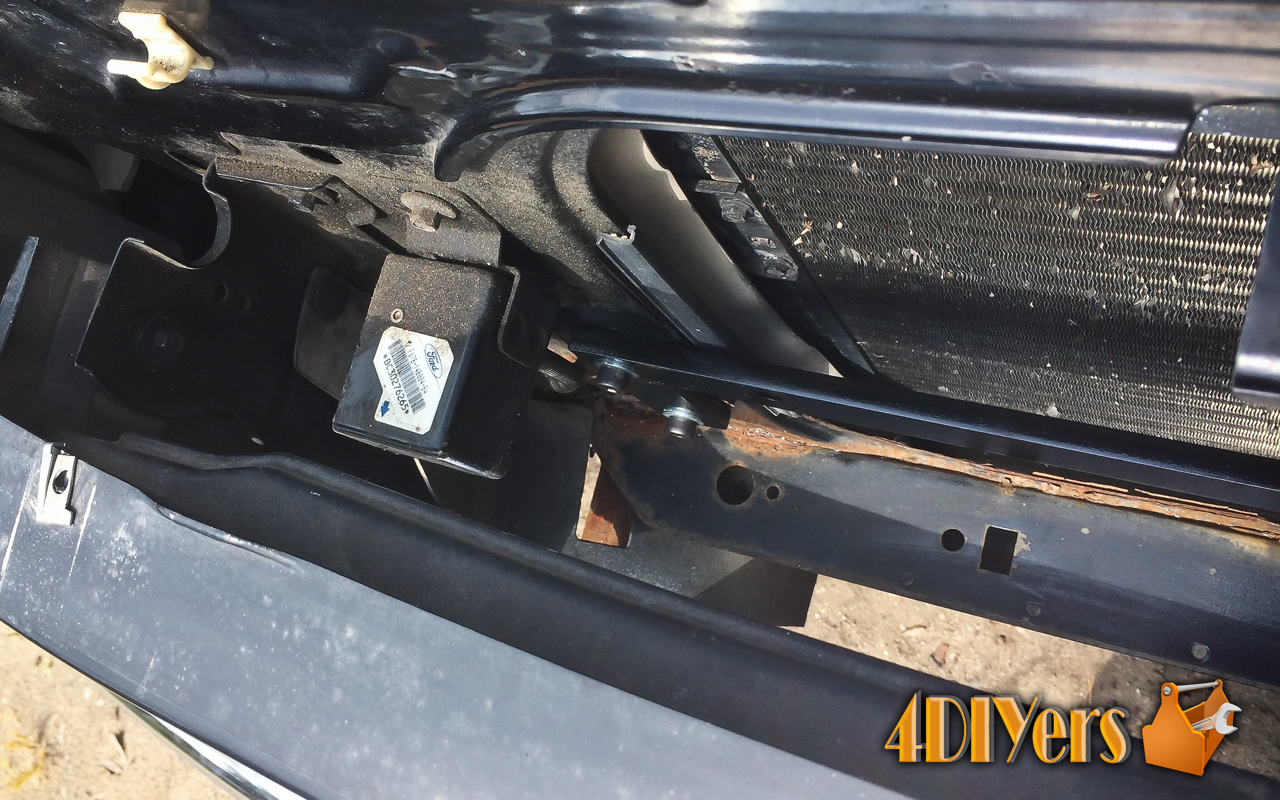

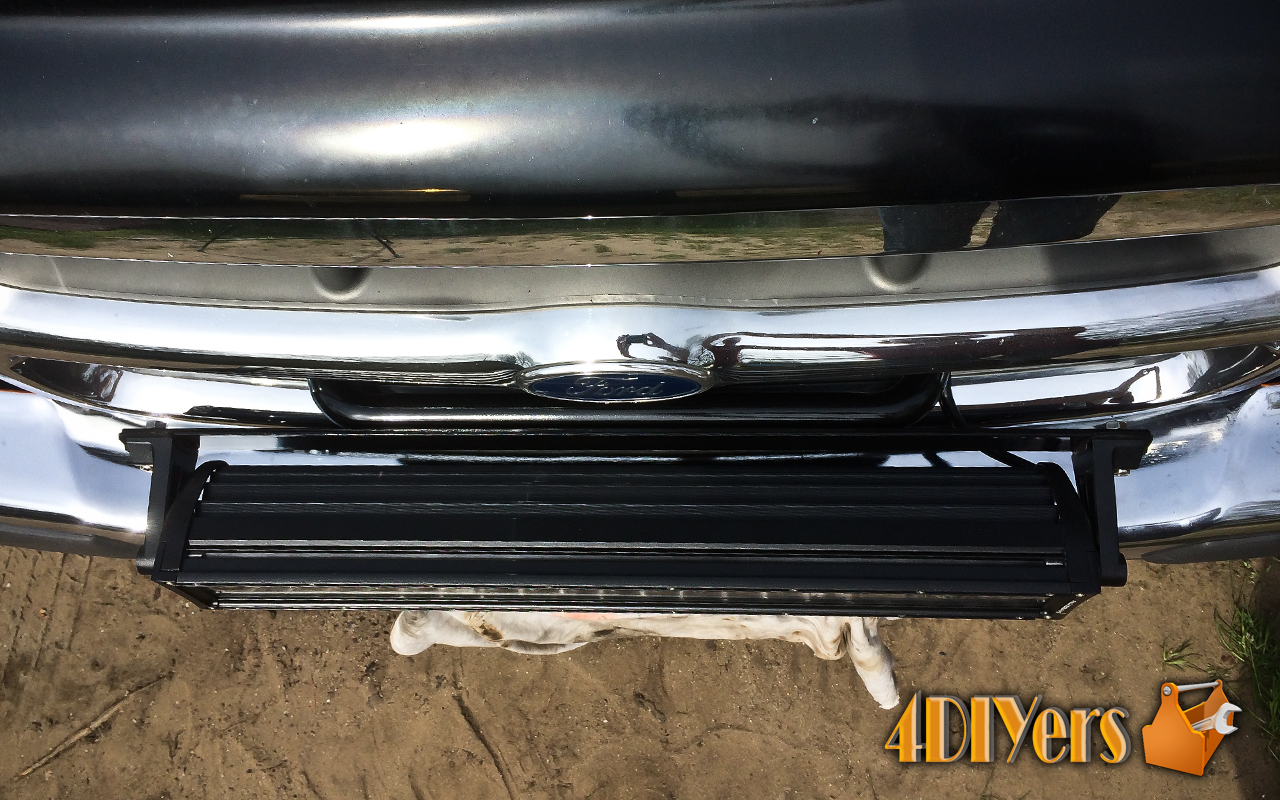

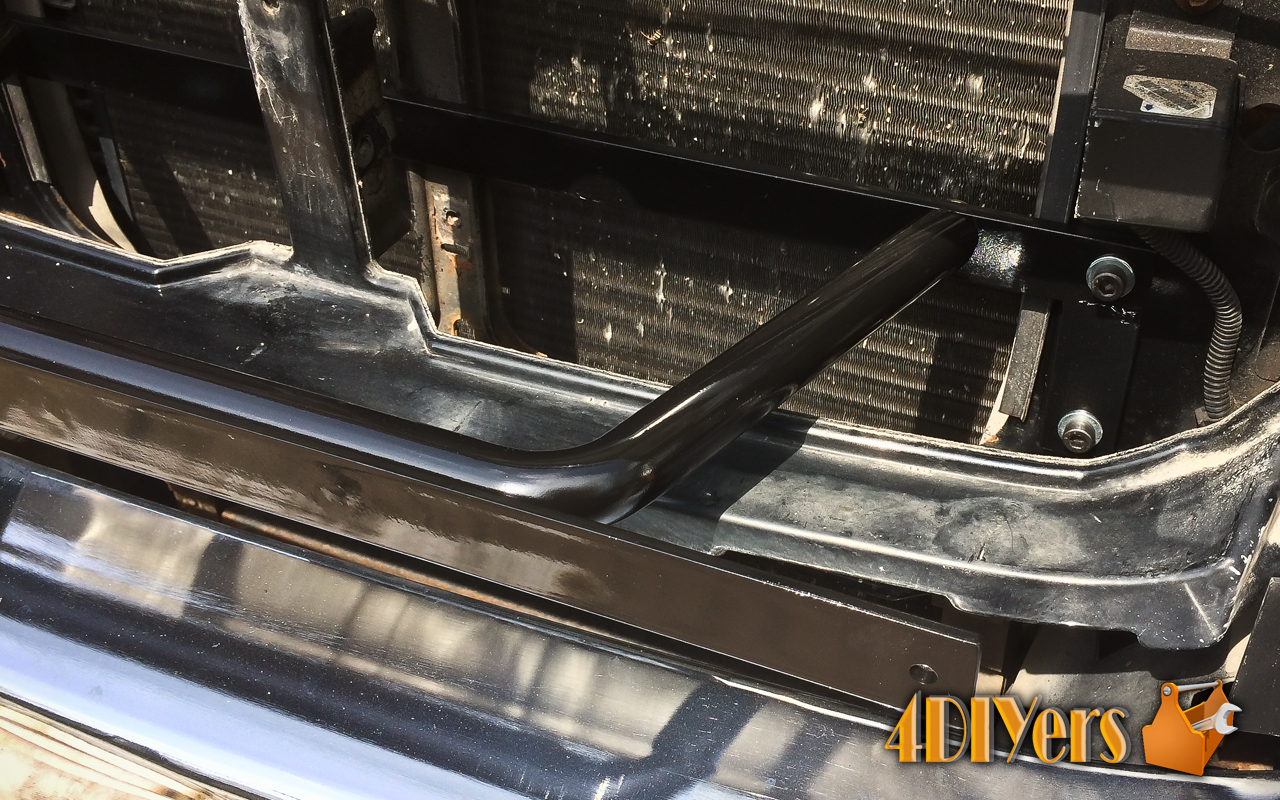

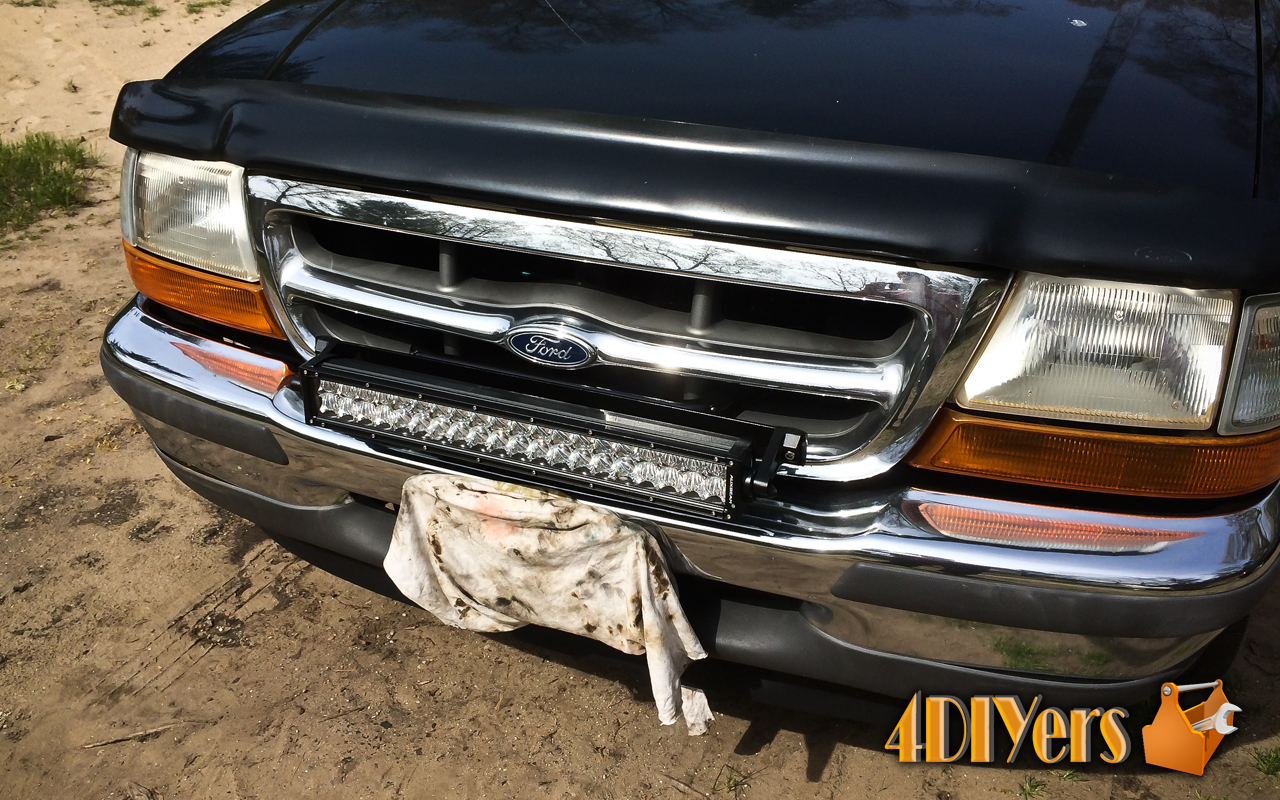

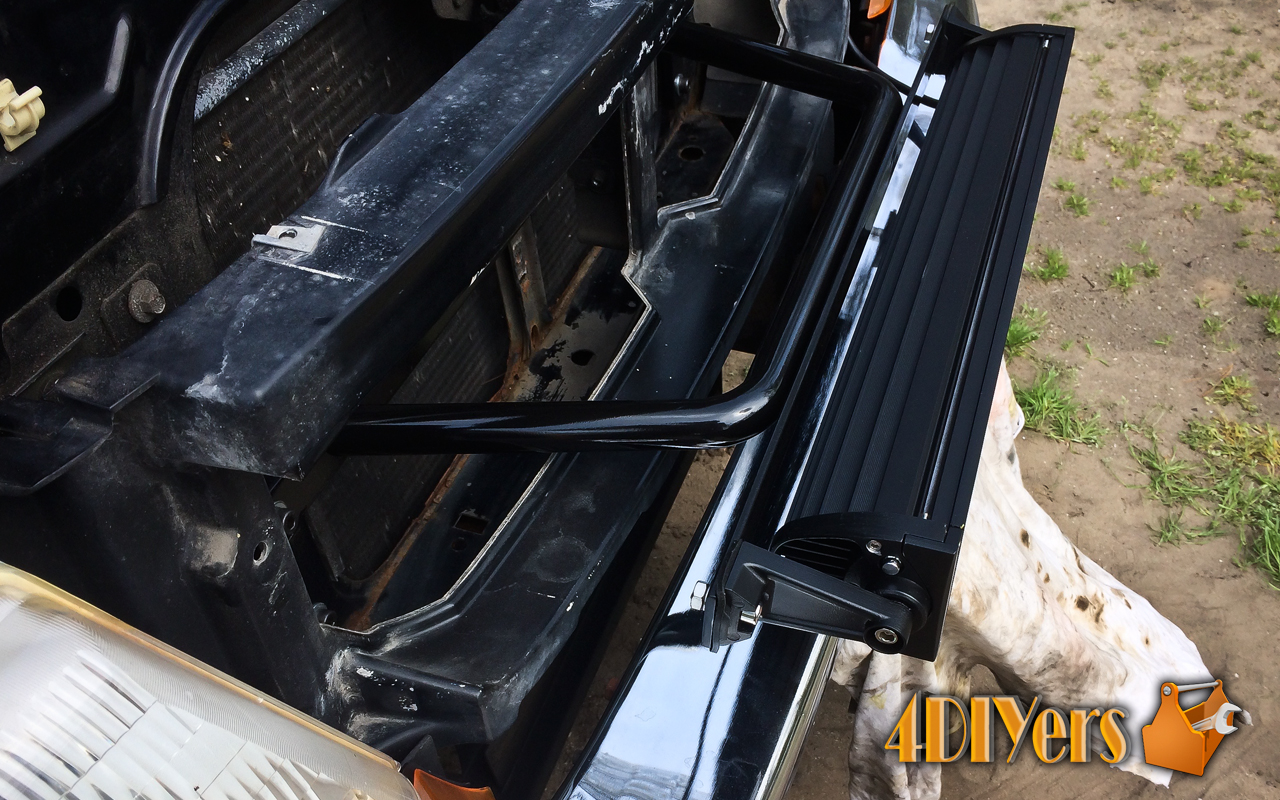

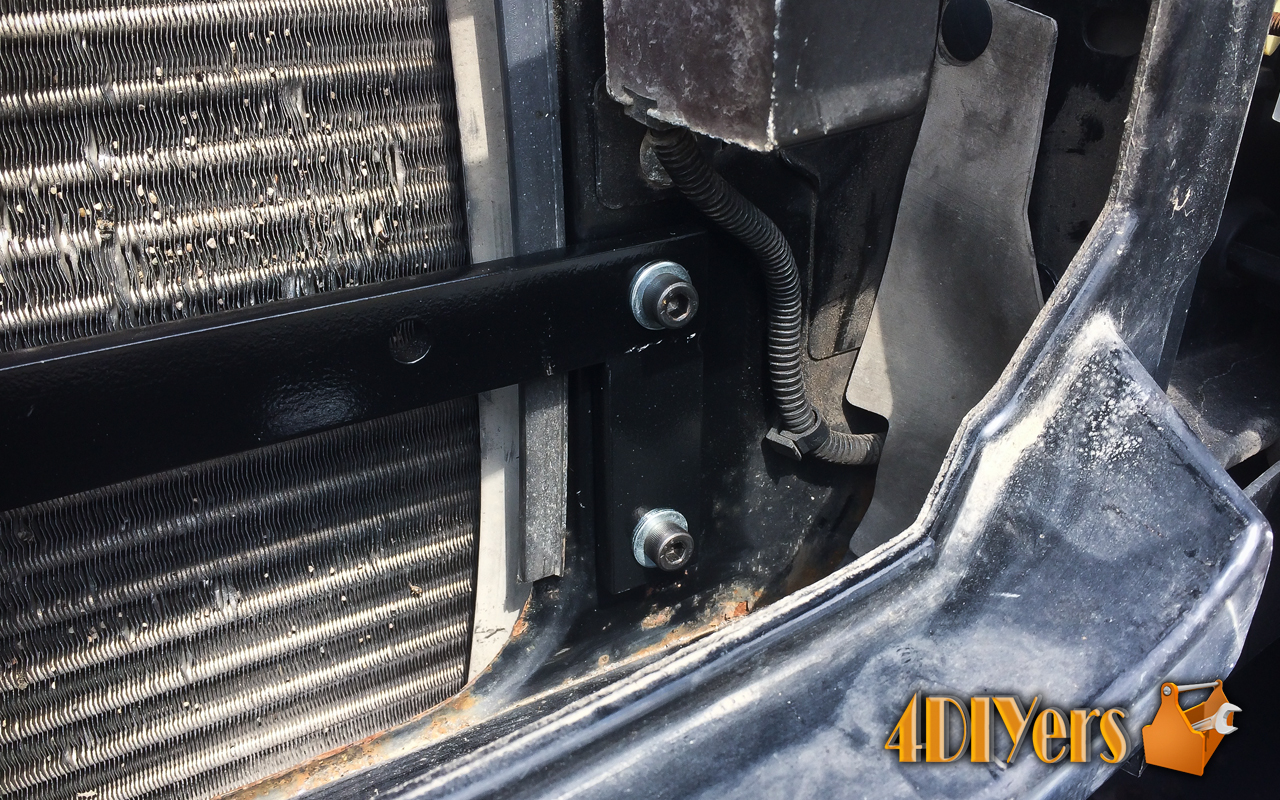

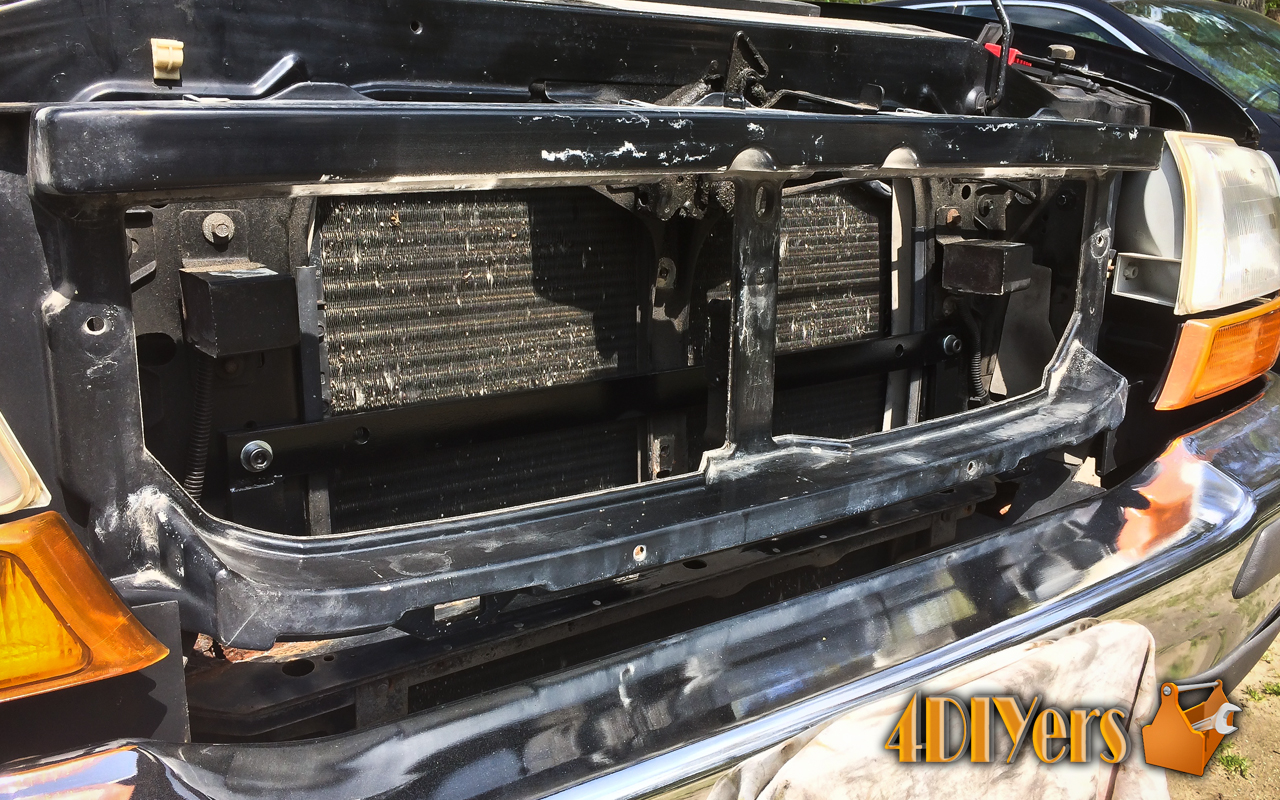

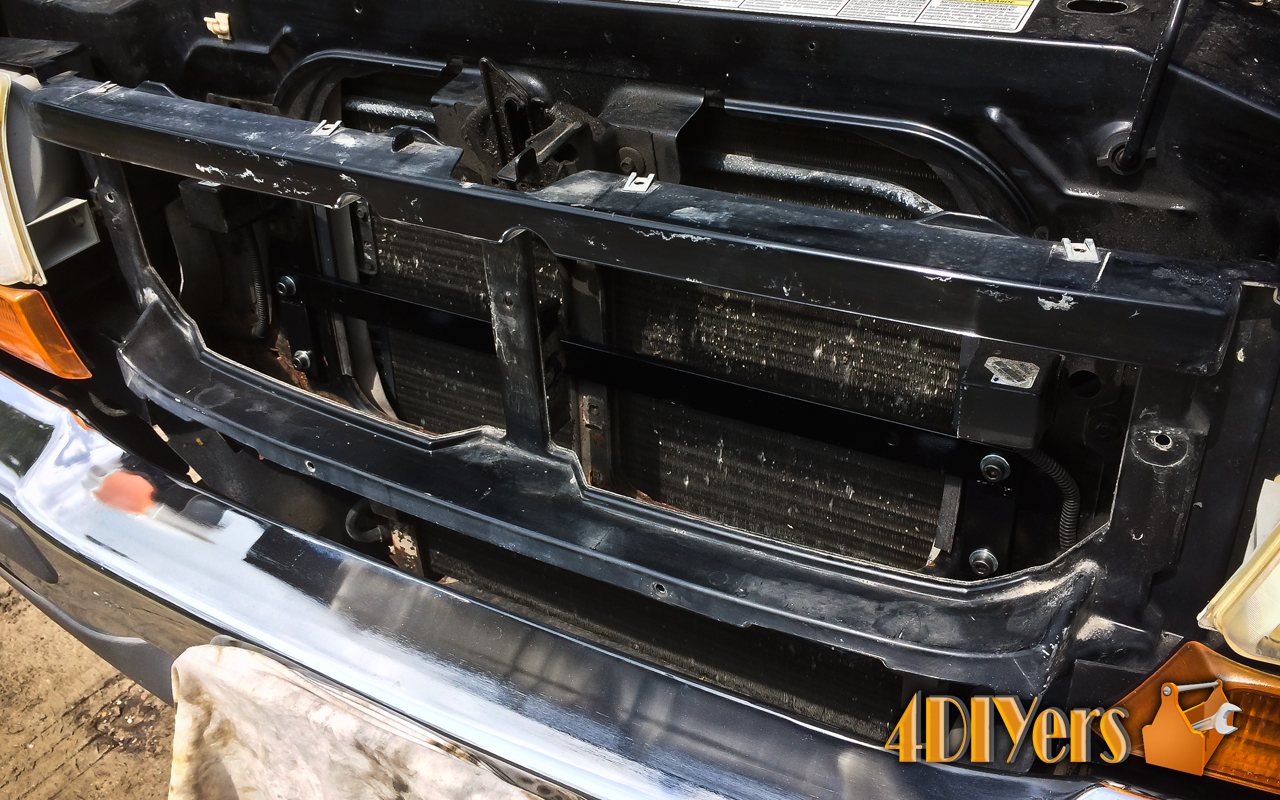

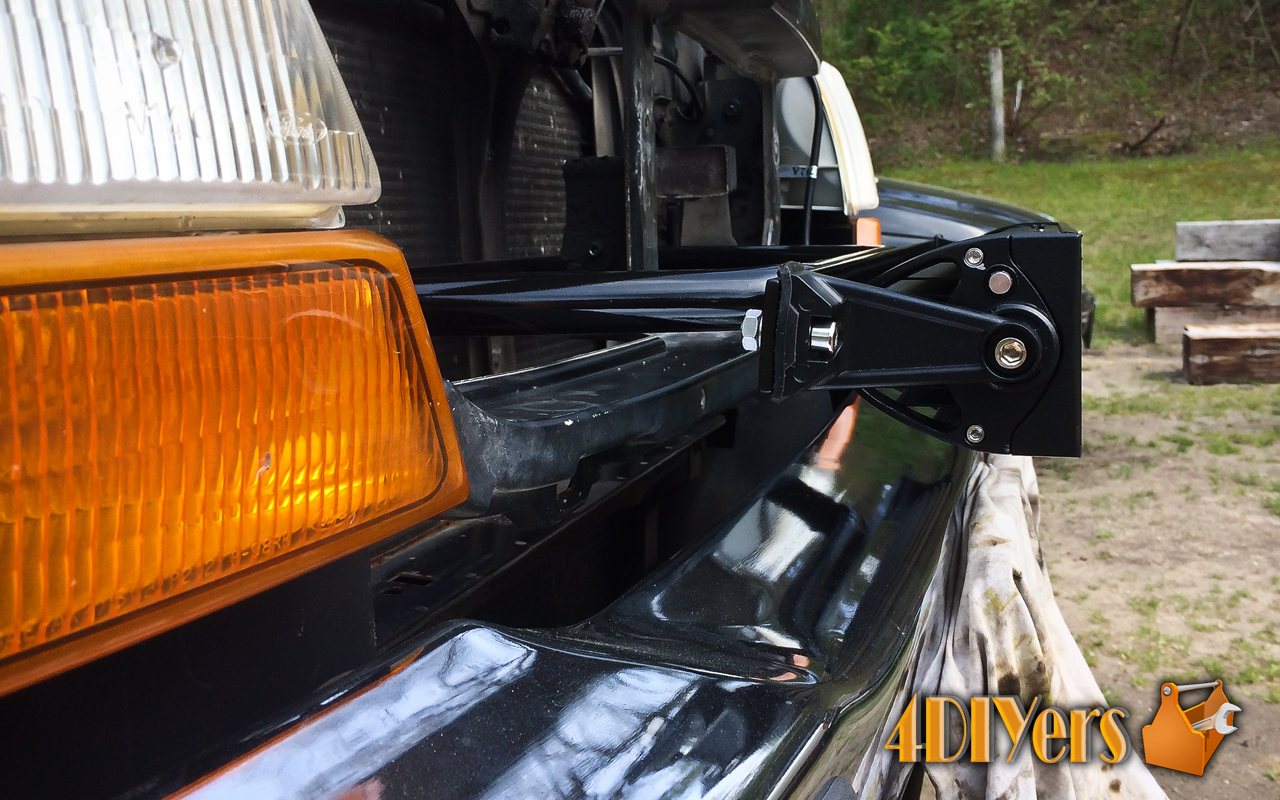

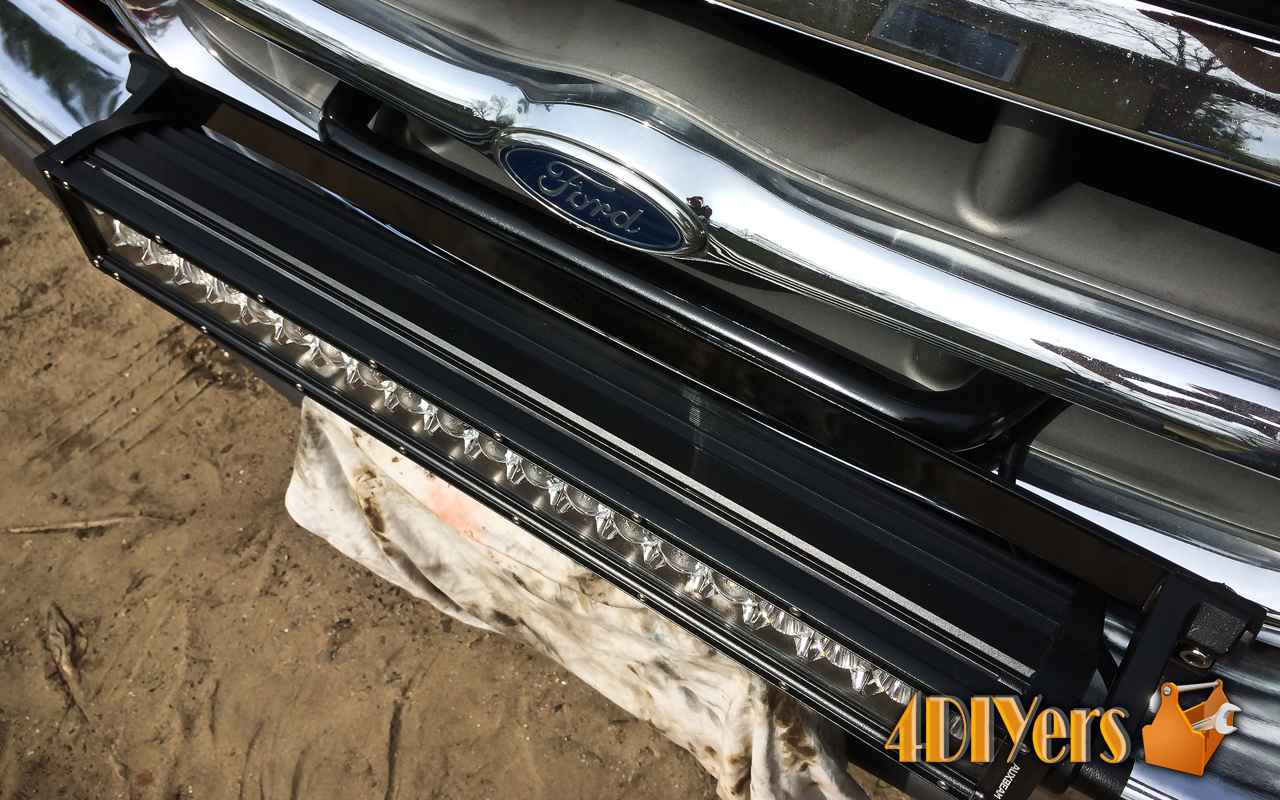

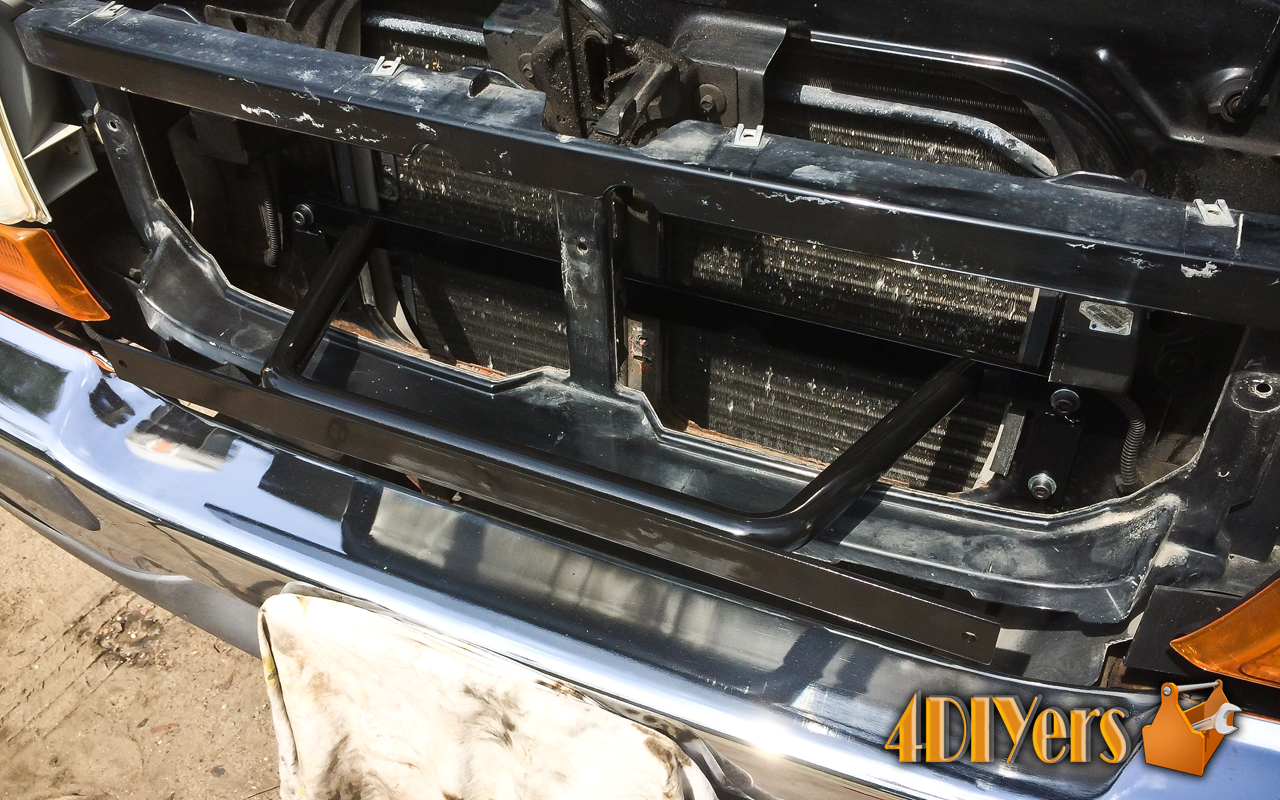

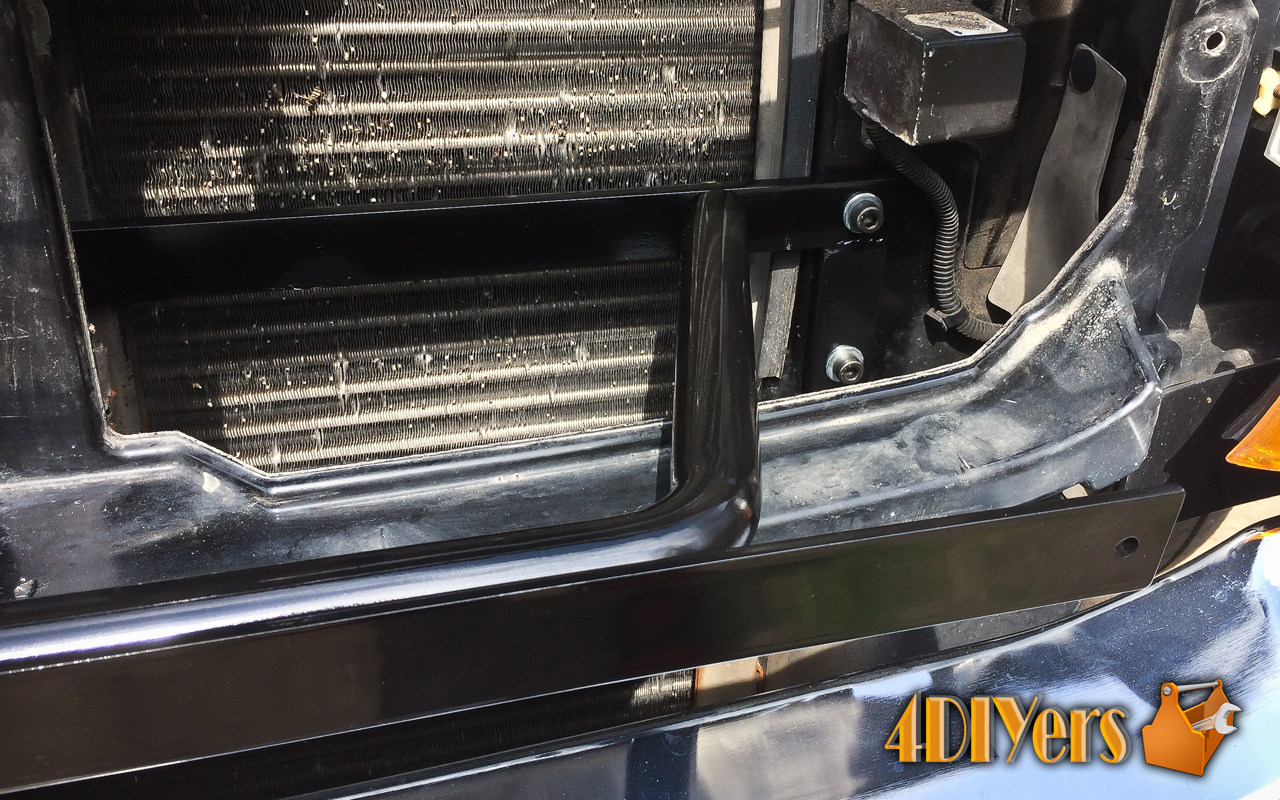

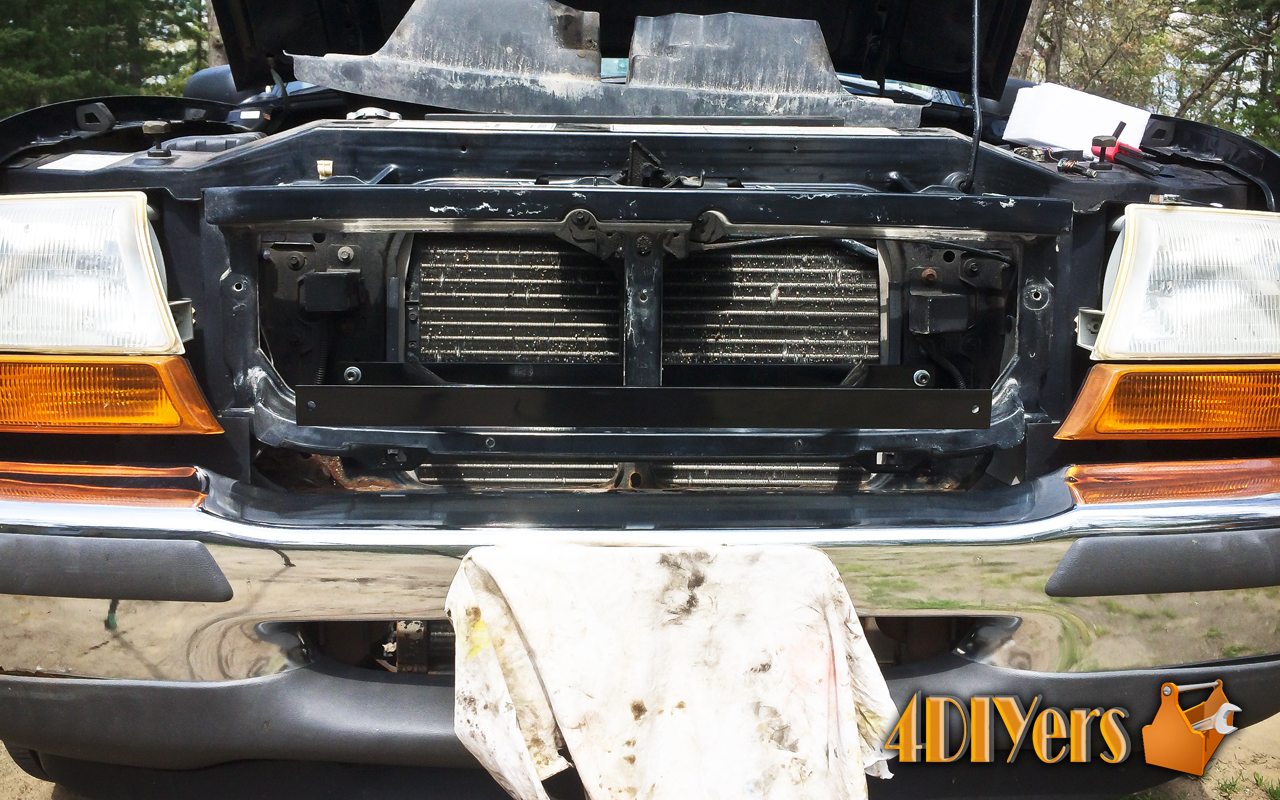

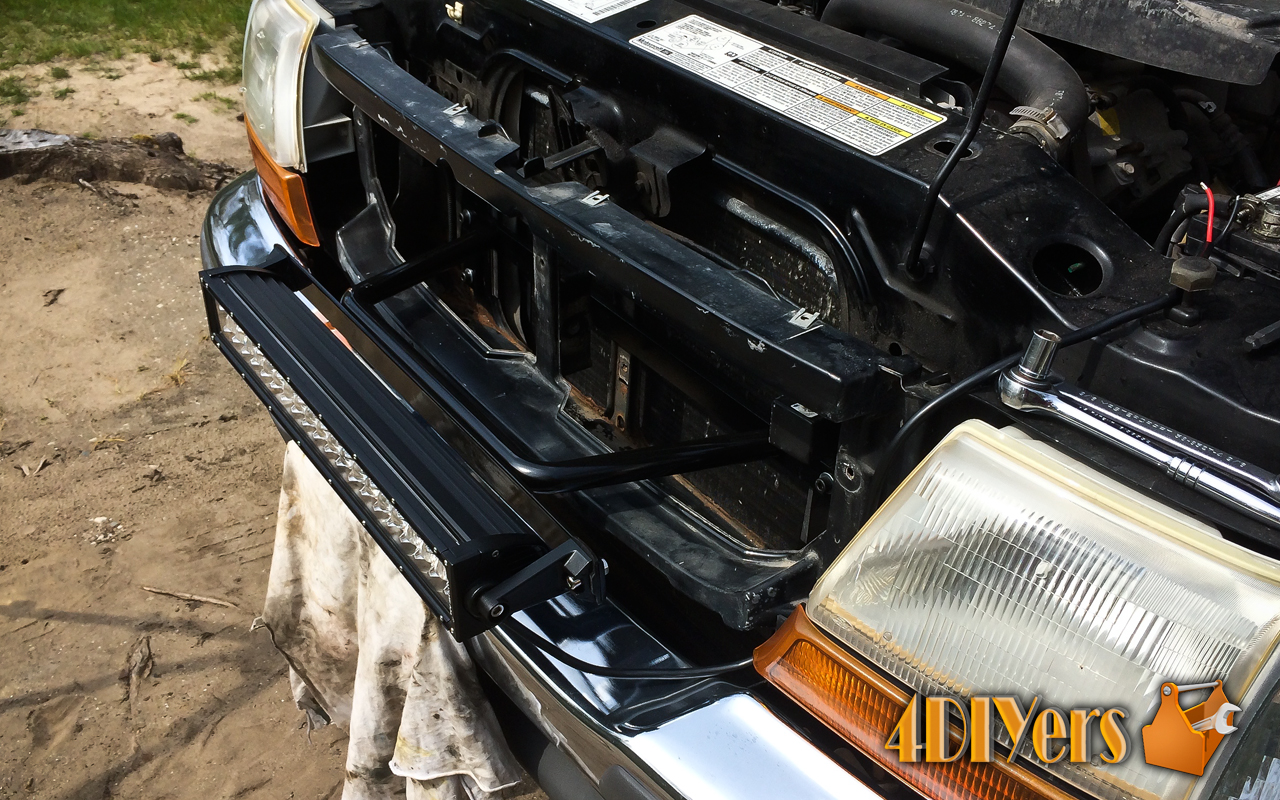

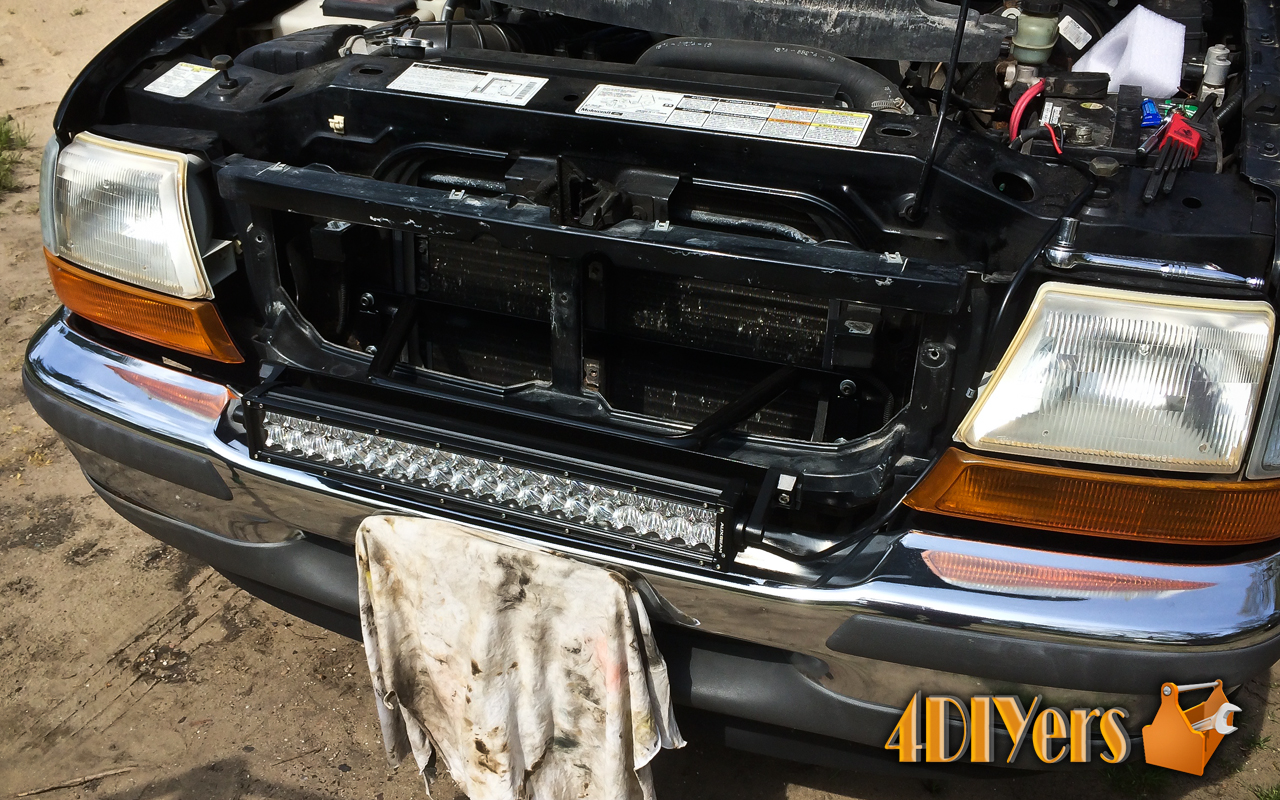

Blueprints for a grill mounted light bar specifically designed for a Ford Ranger. The particular vehicle that was used in this tutorial and design process was a 1998 Ford Ranger. The blueprints can be printed on 8.5x11 paper and can be modified to suit your needs. Please verify all measurements to ensure they are correct for your vehicle. This bracket was also designed around the 22" 5D LED light bar made by Auxbeam. Click on the blueprint photo to download the PDF file.
