Difficulty Level

Tools/Supplies Needed:

• nylon trim removal tool
• standard (flat) screwdriver
• phillips screwdriver
• 3/8" drive ratchet
• 22mm 3/8" drive socket
• pliers
• solder
• solder iron
• short piece of 18 gauge wire
• silicon
• dielectric grease

Procedure:

• remove the plastic trim at the rear of the headliner located at the hatch opening
• this can be done by hand or with the assistance of a trim removal tool
• there will be five clips in total that need to be disconnect along the center of the trim piece
• remove the center retaining clip where the trim piece was located which holds the headliner into place
• the clip can be removed using a standard screwdriver or the nylon trim removal tool
• move seat belt height adjusters all the way down on the rear pillars
• pull back the pillar trim, there will be four clips on each side to disconnect

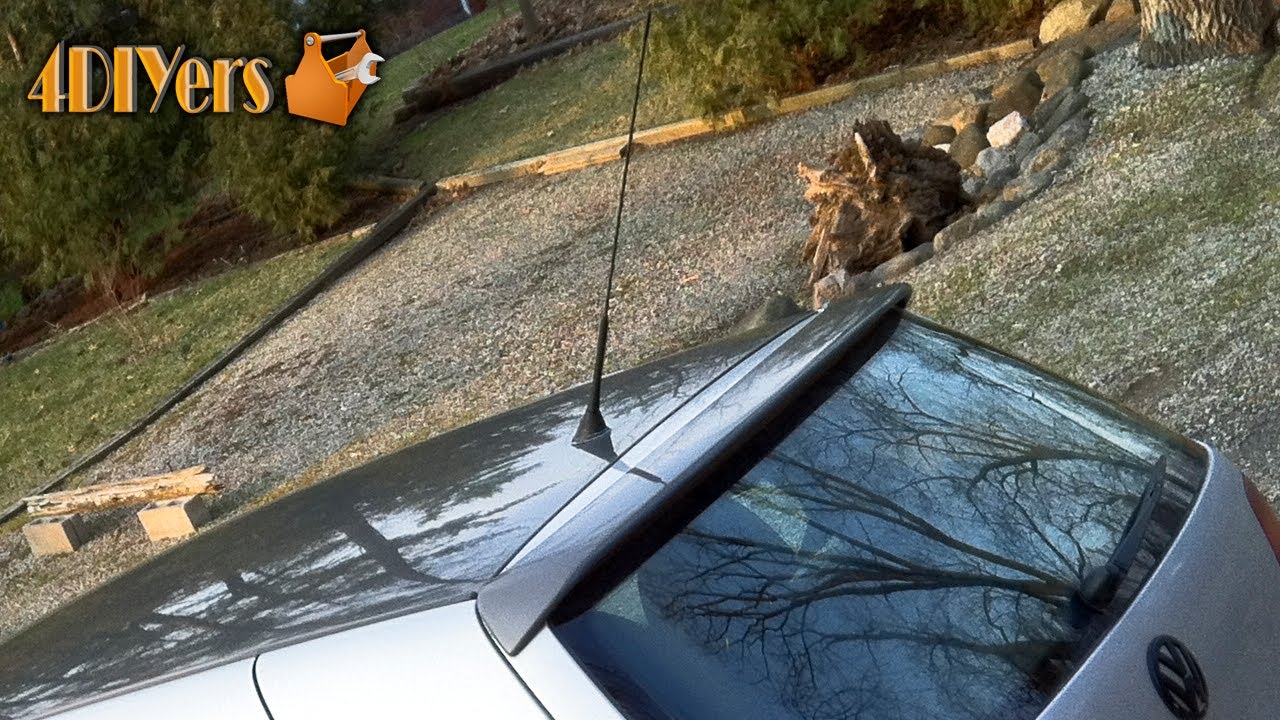

• remove the antenna assembly by removing the large 22mm nut on the underside of the roof using the 3/8" drive ratchet and the 22mm socket
• unclip the wiring
• disconnect the antenna wire
• moving onto the antenna repair, try removing the two phillips screws
• open up the assembly and clean out any of the corrosion
• if the circuit board is not functioning, remove it completely
• solder a wire from the base plate to the end cap, 18 gauge should be sufficient for the job
• apply silicon to the inside of the antenna, ensure that the whole unit is sealed up so moisture cannot penetrate the inside
• allow for the silicon to harden
• if corrosion is found on the antenna connection, clean it accordingly
• apply dielectric grease to the antenna connection which will prevent further corrosion
• installation in reverse

Frequently Asked Questions (FAQ):

Does this procedure apply to a Volkswagen Jetta/Bora?

Yes it does, although dropping down the rear of the headliner is slightly different.
