Difficulty Level

Tools/Supplies Needed:

• new grommets
• jack
• jack stand
• 3/8" drive ratchet
• 3/8" drive 3" extension
• 8mm socket
• bucket
• soap

Part Numbers:

Wash pump strainer and grommet: 61667006063
Rubber Grommet: 61311369343
Rubber Grommet: 61661365657
Rubber Grommet: 61671378631

Procedure:

• jack the vehicle up, remove the wheel using the 17mm socket on the johnson/breaker bar, then ensure the vehicle is secure by placing in the jack/axle stand
• remove all the 8mm bolts using the 3/8" drive ratchet with the 3" extension

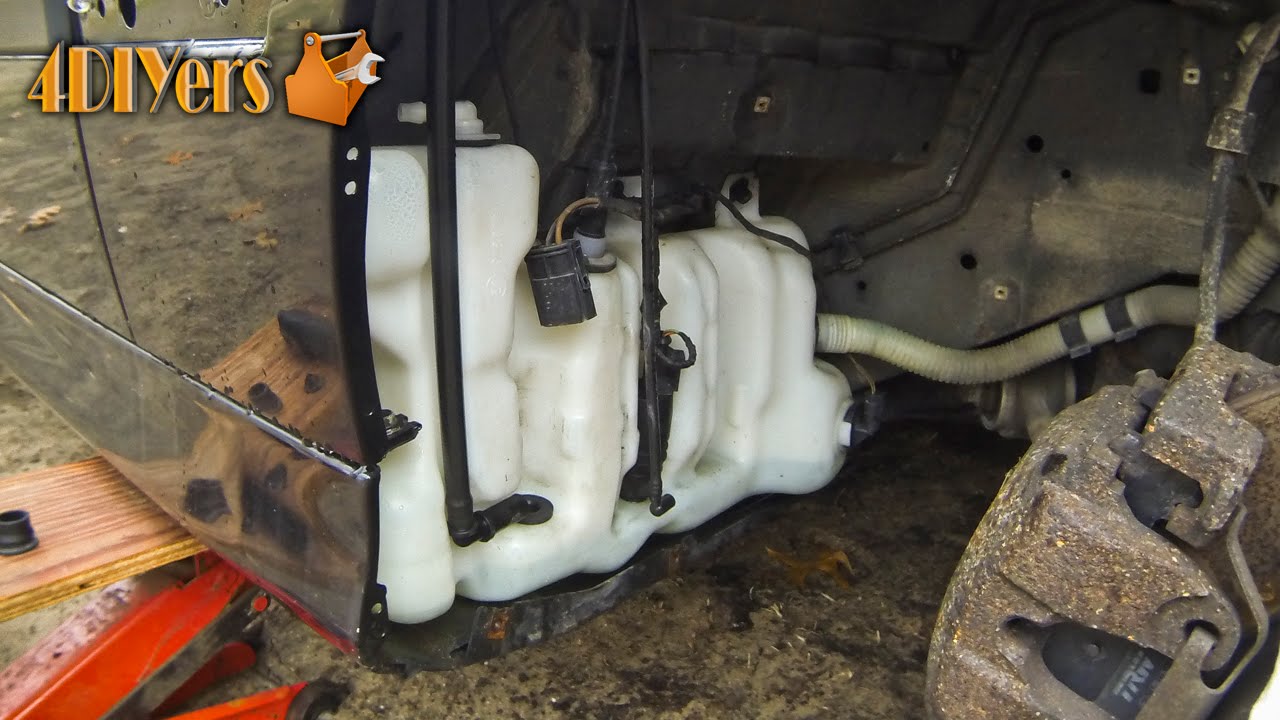

• bent the fender liner upwards or completely remove it
• if there is a significant amount of washer fluid left, place it under the tank and remove the plastic line on the pump
• remove the plastic lines on the pumps
• remove the wire connectors on the pumps and level sensor
• clean around the pumps to ensure no debris falls in the tank
• pull pumps upwards to remove
• pull sensor straight out
• clean around openings again
• remove the grommets
• if you like, you can use a little soap to help push in the new grommets
• installed new grommets
• reinstall sensor and pumps
• reinstall plastic lines and electrical connectors
• test to ensure everything works correctly and there are no leaks
• reinstall fender liner
