Difficulty Level

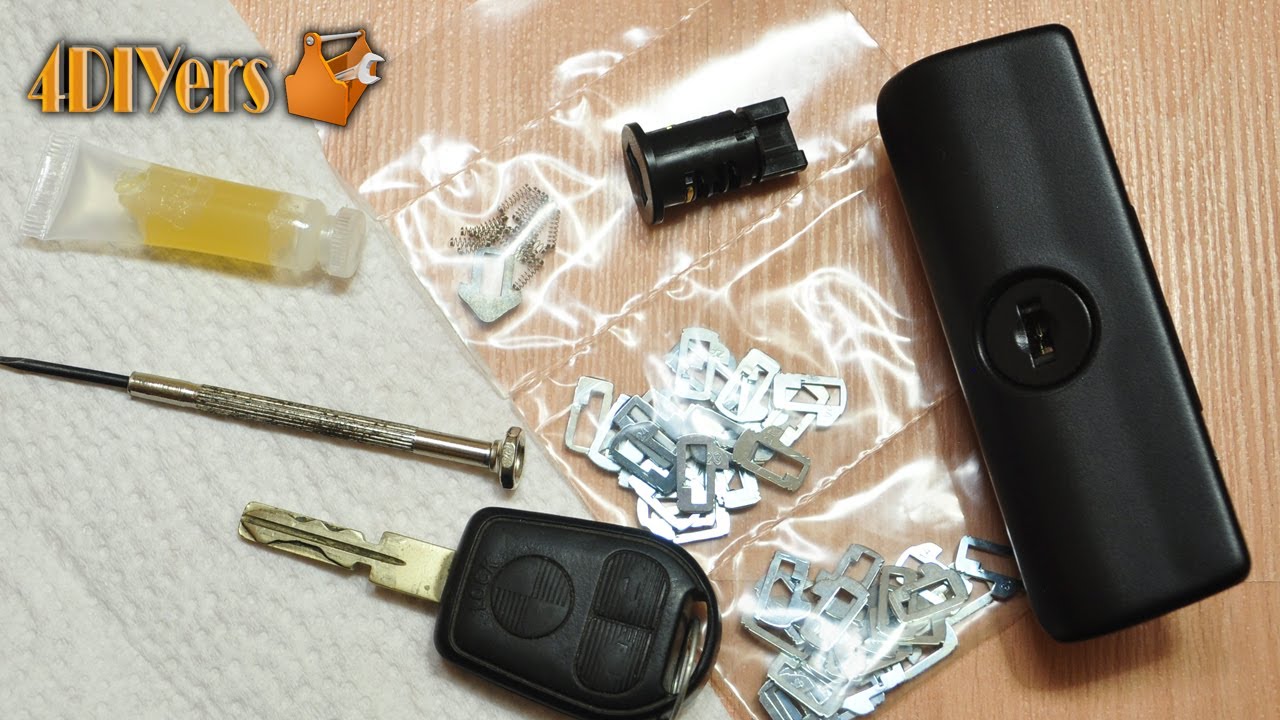

Tools/Supplies Needed:

• pen or pencil
• paper
• small standard/flat screwdriver
• new key lock tumbler kit (part #51168156253)

Procedure:

• first start by removing the glove box handle from the vehicle
• insert the key into the lock
• using a small standard screwdriver, bend the two little tabs gently back, while keeping pressure on the tumbler assembly pushing it outwards
• remove the tumbler assembly from handle
• next remove the key being careful not to have the numbered doors pop out
• make a diagram on paper and write down the each of the door numbers
• install the new springs on the one side of the new tumbler casing
• apply a light amount of grease between two fingers, lightly rubbing it onto the individual doors before installing, then still each door
• continue to the other side
• once done, install the key
• ensure all doors are flush with the outside of the tumbler casing which will determine all the doors are correct
• lightly rub a small amount of grease on the outside of the tumbler assembly
• install the key lock tumbler assembly in the correct orientation, you will hear a click once it's in place
• take the key out, put the key back in and turn the lock to ensure everything works correctly
• reinstall handle back into the glove box
