Difficulty Level

Tools/Supplies Needed:

• standard/flat screw driver
• razor knife (optional)
• T20 torx screwdriver
• pliers
• replacement adjusters (part #63120027924)
• soft gloves

Procedure:

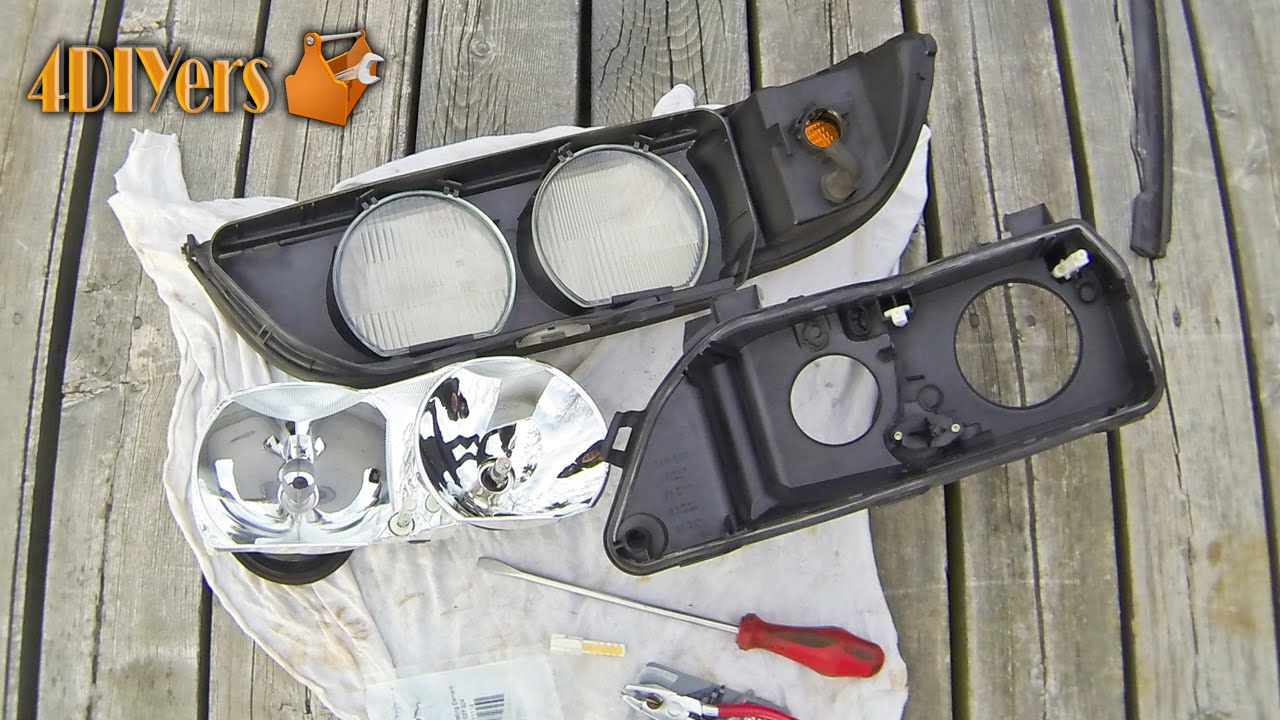

• first remove the headlights from the vehicle
• remove the outer headlight lens
• next using a T20 torx screwdriver, remove the screw behind the reflector which can be seen roughly in the middle of the housing on the bottom
• using a standard screwdriver, pry over the black plastic bracket and twist in a clockwise orientation
• pull the bottom outward to ensure it's disconnected
• unscrew the adjusters if one is not broken
• push in the rubber grommet on the backside inside the housing
• pull out reflector
• remove the broken adjuster pieces
• unclip the black plastic bracket from the bottom side of the reflector and screw it back into place
• screw in the new headlight adjusters into the housing, they may need to be assisted into place
• screw them in until they are about half way
• when working with the reflector, use gloves as this reduces the risk of smudging the chrome reflector
• put the reflector back into place
• first snap it into the black bracket
• then snap it into place on each adjuster
• pull the rubber grommet through the back of the housing
• reinstallation in reverse
• aim headlights according to factory specifications
