Difficulty Level

Tools/Supplies Needed:

• small standard/flat screwdriver
• T20 torx screwdriver

Procedure:

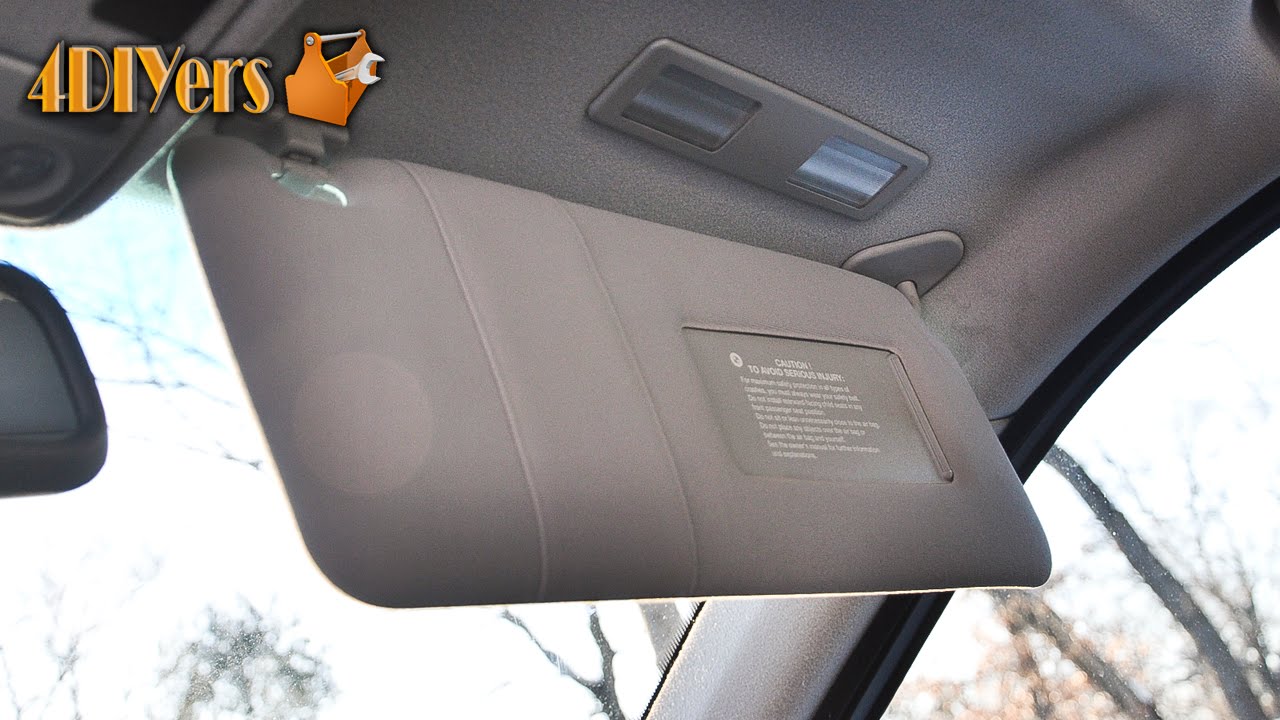

• first start by opening the sun visor
• working with the fixed end first (not the clipped side), remove the plastic triangular shaped cap by using a small standard screwdriver, which will expose two torx screws
• now swing the visor to the side view inside the car, ensure the triangular cap does not get caught in the process
• using a T20 screwdriver, remove the one screw that is exposed
• now swing the sun visor towards the front of the vehicle and ensure the triangular piece does not get caught
• clip the sun visor back into place, while it is still having downwards
• remove the last T20 screw that is exposed
• unclip the sun visor, slowly slide it out of the location it was screwed too
• ensure the wires do not get caught in the process
• now unclip the wires, they pull straight apart
• moving onto the clip, using the small flat (standard) screwdriver, pop open the two doors
• these doors slide outwards and will expose two T20 screws
• once open, use the T20 screwdriver to remove the two screws
• installed in reverse of removal
