DIY: BMW E39 Side Marker Removal

Difficulty Level

Tools/Supplies Needed:

• standard/flat screwdriver
• electrical tape

Procedure:

• using a standard screwdriver, wrap electrical tape around the tip so it doesn't scratch the paint
• when look at the light, regardless of which side it's on, both need to be pushed forward and unclipped from the rear
• place the standard screwdriver on the backside of the light (towards the rear of the vehicle) and push forward (to the front of the vehicle)
• now pull outward at the same time on the back of the light
• once popped out at the rear, then pull it out slightly and release the front
• once removed, disconnect the wire by twisting in a counter clockwise direction when looking onto it from the rear of the assembly
• then pull out
• in order to remove the bulb, just pull straight out
• installation in reverse

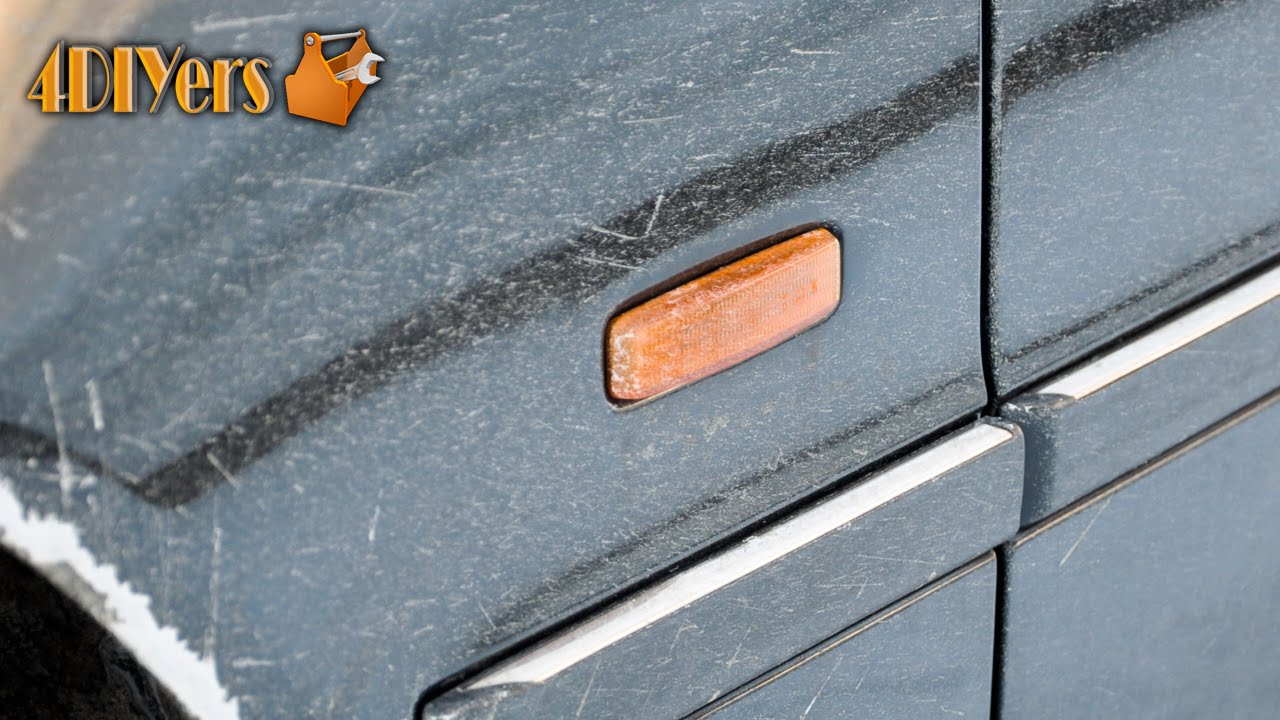

Video tutorial on how to remove the fender repeater lights on a BMW E39. This tutorial does apply to both the pre and post face-lifted vehicles. Both amber and white fender marker lights are interchangeable between the years as well. The bulb which is required for a replacement is 2821. Amber lenses require a white bulb, clear lenses require an amber bulb. When removing the light assembly, some might be stuck from sitting over time, therefore they do require a little extra force when removing. This particular tutorial was done on a 1997 BMW 540i.
