Difficulty Level

Tools/Supplies Needed:

• lithium battery model number CR2032
• standard (flat) screwdriver
• phillips screwdriver
• razor knife

Procedure:

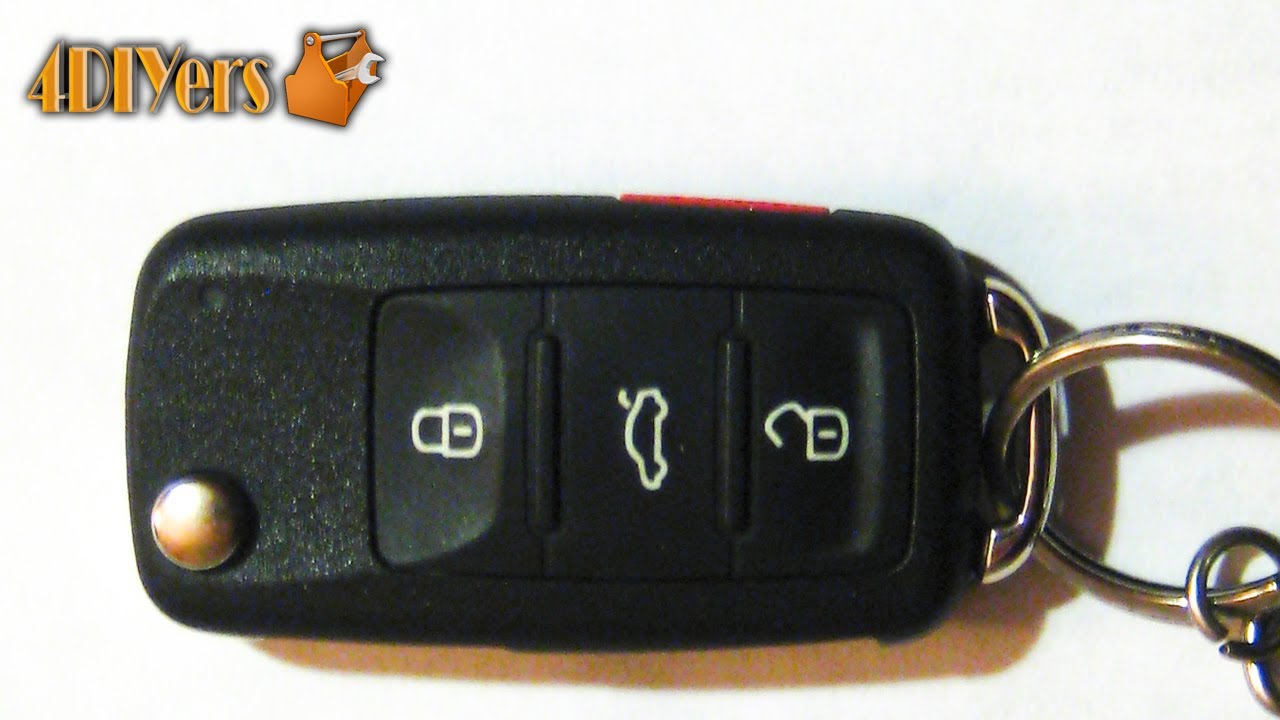

• have the switchblade key in the open position
• then insert the standard screwdriver in the opposite side where the key tucks away in the case and slowly pry the case apart
• use the standard screwdriver and insert it along the seam on the button side which tucks into the case
• in order to remove the circuit board, the plastic retaining clips must be cut out using a razor knife
• in order to remove the battery, just stick the standard screwdriver along the edge and pop it out
• a replacement battery is a lithium battery model number CR2032
• to remove the key or access the immobilizer, leave the switchblade key in the open position and remove the round Volkswagen emblem using a small standard screwdriver
• use a phillips screwdriver to remove the small screw behind the emblem
• once the screw is removed, pull the case apart
• be sure to not to lose the spring inside
• use a small standard screwdriver to remove the immobilizer
• assembly in reverse of disassembly

Frequently Asked Questions (FAQ):

Why did the new batteries only last a couple weeks?

They only lasted a couple weeks due to the fact they were most likely old batteries. Some batteries may sit in storage or on the shelf for longer periods of time, therefore losing their charge.

My key fob won't work after I replaced the battery, why is that?

Try reprogramming the remote. Please refer to the steps below on how that is done.

Can the immobilizer be transferred to a new case?

Yes it can be.

Programming Procedure

1. Get into your vehicle, ensure all the doors are closed, and roll the driver's side window all the way down.
2. Insert the working key fob into the ignition and switch on the ignition, but do not start the engine.
3. With the new key fob, lock the vehicle form the outside manually, but do not hold it in the lock position.
4. Press the new remote lock and unlock buttons simultaneously one time and then wait at least two seconds.
4. Press either button once again once.
5. Manually unlock the door, then switch off the ignition and remove the key fob from the ignition. The programming procedure is complete.
