Difficulty Level

Tools/Supplies Needed:

• phillips screwdriver
• replacement bulb #1157 dual filament style
• 8mm 3/8" drive socket
• 6" 3/8" drive extension
• 3/8" ratchet

Procedure:

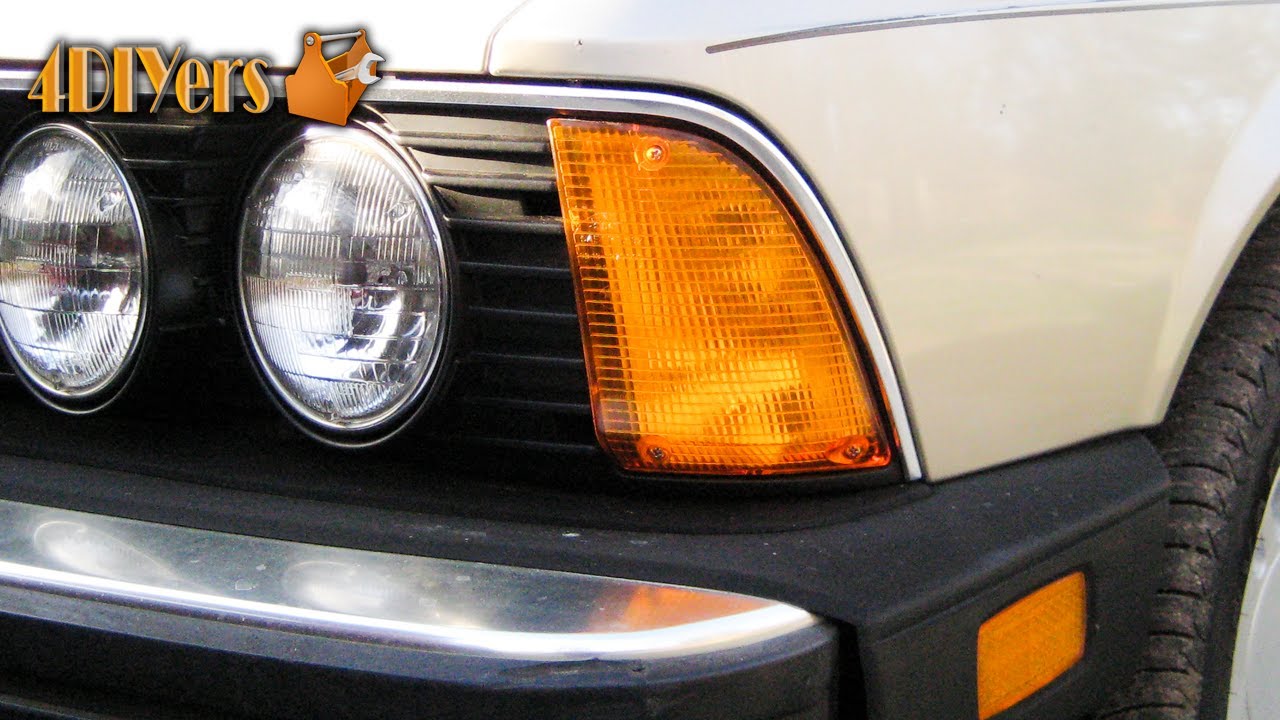

• remove the three phillips screws on the outer lens
• the lens should pop off, a little force maybe needed if it's stuck
• once removed the reflector and bulb will now be exposed
• in order to replace the light bulb, push bulb in gently and twist counter-clockwise and pull straight out
• the remove the rear light assembly, remove the two 8mm bolts
• open the hood
• unclip wiring harness found on the inner fender towards the front of the vehicle
• push the wiring harness grommet through the hole
• pull rear assemble of parking light gently while guiding wiring harness through the hole under the hood
• installation in reverse of removal
